Mannesmann Meer
MODEL MM25/3

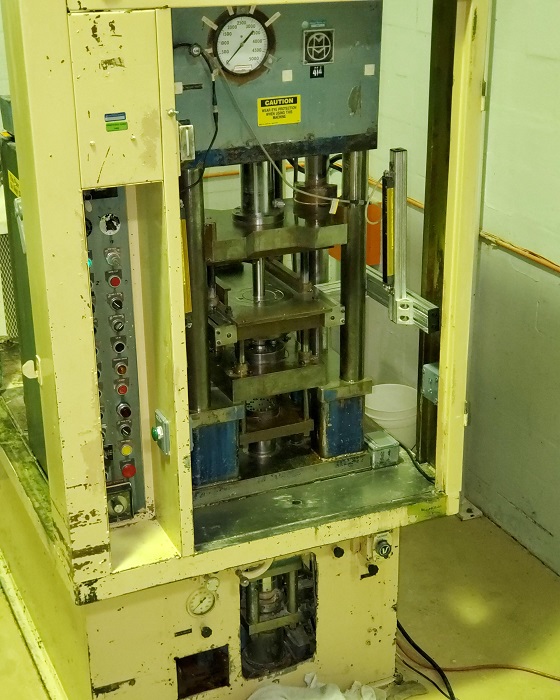

Mannesmann Meer Model 25/3, 28 Ton Powder Compacting Press, Serial Number CP2566-3-063 Inventory Number DPM-2348. This unit features hydraulic design, opposed ram, die set, 7 1/2 hp 1200 rpm motor operating at 220/440 volt, 3 phase, 60 hertz, Denison Lower Ram Flow Control, Vickers Die Force Float Control, handwheel fill adjustment, shuttle feed from rear, 28 ton maximum pressing force, 17 ton maximum withdrawal force of lower ram, 9.3 ton maximum pressure for floating die action, 8″ maximum upper ram stroke, 4 7/8″ maximum depth of fill, 17″ right to left between columns, 7″ front to back between columns, up to 18 strokes per minute, operator controls.
STOCK NUMBER: DPM-2848
